How To Repair BMW Oil Cooler Line

BMW Oil Cooler Line Repair

Vehicle is a BMW 5 series E60 535xi, one of oil cooler lines failed, sending oil all over engine bay.

Instead of buying a new one (expensive), old oil cooler line was repaired. Repair was done by Nitroindustrial.com, on Jane Street just north of Langstaff. This is in Toronto but every major city should have similar facilities. Repair cost was at a fraction of price for a new line, with a sturdier high pressure hose.

Fittings were cut and welded to a new flexible metallic hose, very precise job and will probably outlast the car itself.

Removal is pretty much straightforward. Oil cooler line has two 6mm Allen bolts, one bolt is located on oil cooler housing. See red arrow image below.

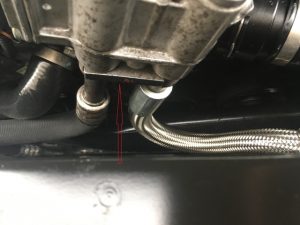

BMW 535xi oil cooler lines on a oil cooler hub.
BMW Oil Cooler Lines

Another oil cooler bolt is located close to radiator. Both bolts are easily accessible and can be removed with little effort.

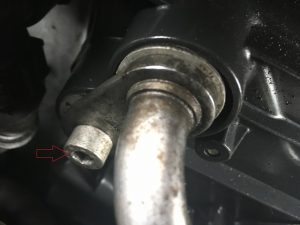

BMW oil cooler line bolt, on radiator side prior to removal.
BMW Oil Cooler Line Bolts

(If you are also looking for a fast and easy solution to sell your car, more here on “How To Sell Your Car Fast” in Ontario).

BMW Oil Cooler Line Removal

Remove oil line bolts and disconnect oil line. Installation is easy, reversal of removal but you need to use new O-rings gaskets, just to be on safe side.

New and old BMW 535xi oil cooler lines side by side, difference is visible.
BMW Oil Cooler Line Repair

Below is oil cooler line after installation, it looks good and its of high quality.

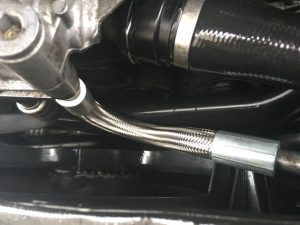

Newly repaired oil line installed on Oil cooler housing on BMW engine.
BMW Oil Cooler Lines

BMW Oil Cooler Line Repair: When one oil cooler line goes bad, chances are the other one is about to go too. Its a good idea not to wait for the other cooler line to start leaking but change or repair both lines at same time.

Details on oil change intervals and how to prevent engine sludge: Oil change Intervals.

Comments: If you have any questions or suggestions related to this post or Used Car Toronto in general, don’t hesitate to use comment section below.
