Volvo Trunk Lid Latch Problem, How To Fix Trunk Latch Actuator

How to Fix Volvo Trunk latch: Volvo trunk lid does not close, latch mechanism does not catch leaving trunk lid open. Motor is clicking when pressing trunk unlock button eliminating possibilities of open circuits (no broken wires) or broken motor.

Volvo did not bother to add a mechanical emergency release from inside trunk. If trunk lid get stuck closed, a lot of things will need to be torn apart to open it again.

Latch Removal:

Trunk Lining has 11 clips. Use a screwdriver to pull them out. Next, remove trunk lid handle (blue circle).

Opened Volvo Trunk with lining and bolts.
Volvo Trunk Lid Problem, Latch/Actuator Repair

Trunk lid handle has 3 clips and is a pain to remove, take your time.

Remove trunk lining and pull out trunk latch cover. It’s a push in type, just pull on it and will come out.

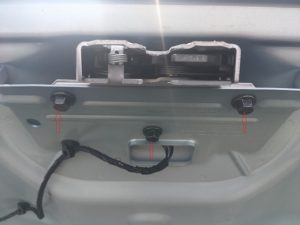

Volvo trunk with lining removed revealing truck latch and trunk latch bolts.
Volvo Trunk Lid Problem, Latch/Actuator Fix

How To Remove Volvo Trunk latch

Trunk Latch mechanism will be revealed after removing trunk latch cover. It has three 10mm bolts. Remove bolts, unplug electrical connection and pull Volvo latch mechanism out.

Motor is attached to latch mechanism by a single screw (red arrow), torx safety screw.

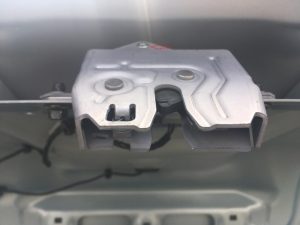

Latch assembly mounted on trunk frame.
Volvo Trunk Lid Problem, Latch/Actuator Repair

Security torx screw has a pin in the middle which will prevent a normal torx tool to remove it. There is no logical reason why Volvo decided to do this, apart from preventing disassembly. Anyways, a small sharp chisel and a hammer solved that.

How To Fix Volvo Trunk latch

Primary problem with this trunk latch mechanism is cheapness. Secondary problem is a broken axle which operates latch release lever.

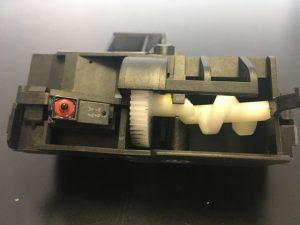

Volvo latch actuator with a broken axle.
Trunk Lid Actuator

It should have never happened if axle was built of solid plastic instead of hollow.

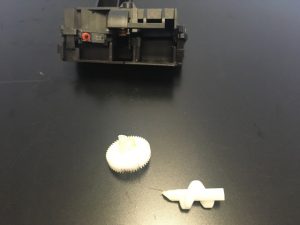

A dismantled S40 Trunk latch with axle broken.
Volvo Trunk Lid, Latch/Actuator Repair

You can try to glue it, using J-B plastic Weld and superglue. You can buy J-P weld from Home Depot for about $10.

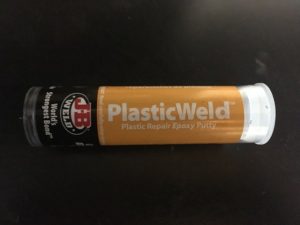

J-B weld putty glue package which is used to fix axle.

Axle is hollow on inside. Something will be needed inside the axle to help bond it, otherwise will break again. Find a nail of same length and as close to diameter of axle hole as possible. Insert nail inside the axle and cut it to size if long.

Fill up axle hole with J-B Weld Plastic putty glue, you won’t be able to get much in there but try your best. Insert nail inside the axle after filling it up with putty glue.

Use superglue to instantly bond the axle making sure it lines up properly. Leave it dry for few hours and will create a strong bond. Do not leave any glue residue on outer part.

Installation reversal of removal.
